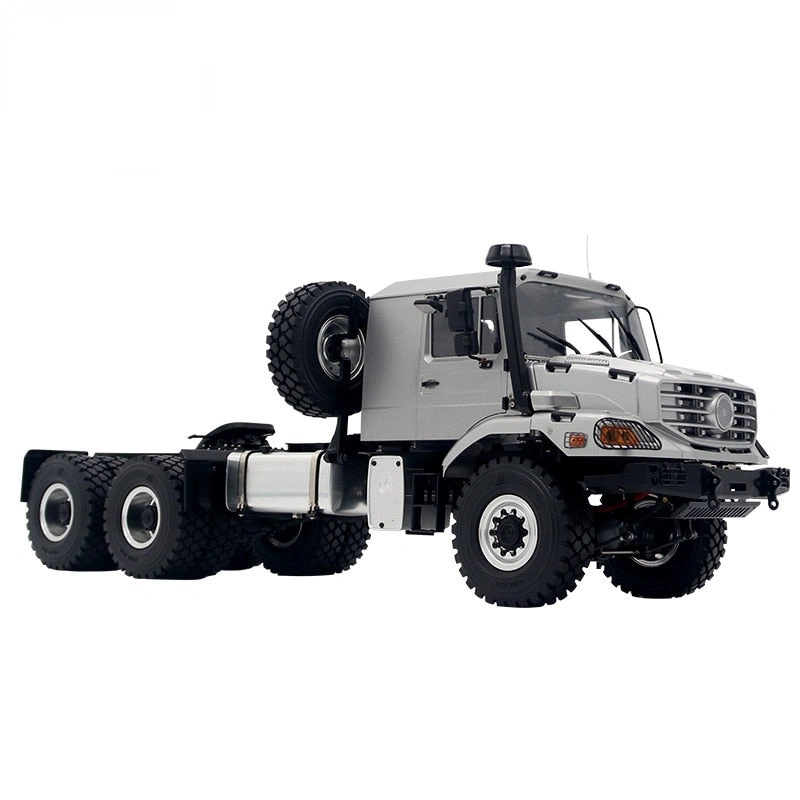

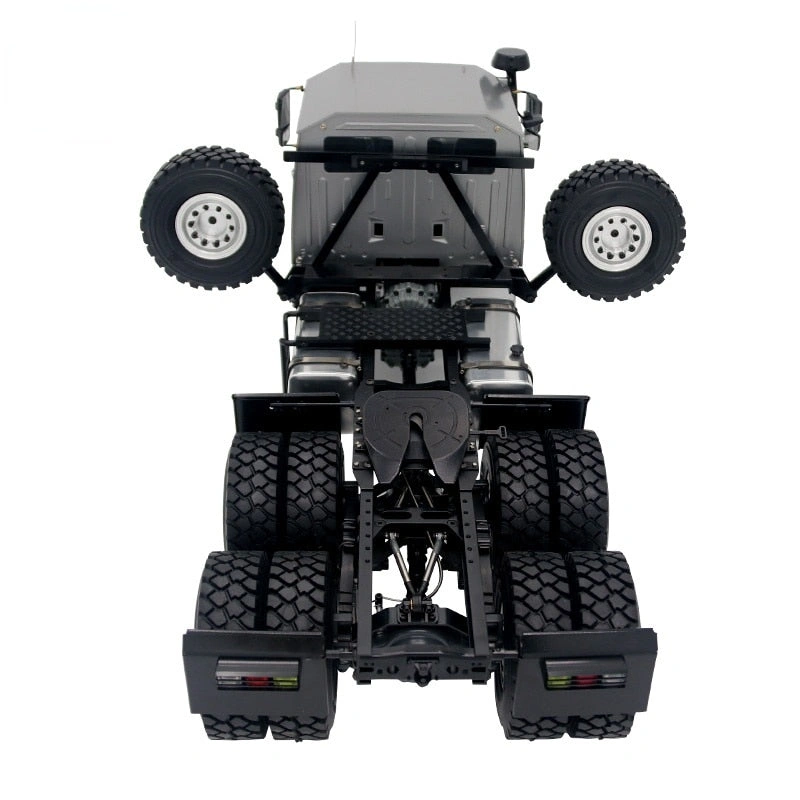

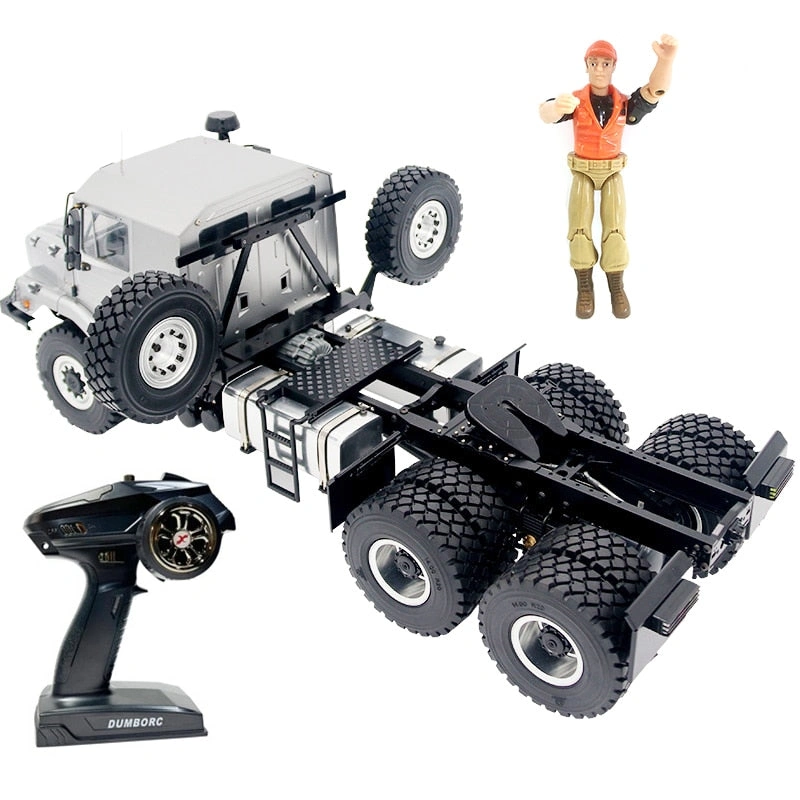

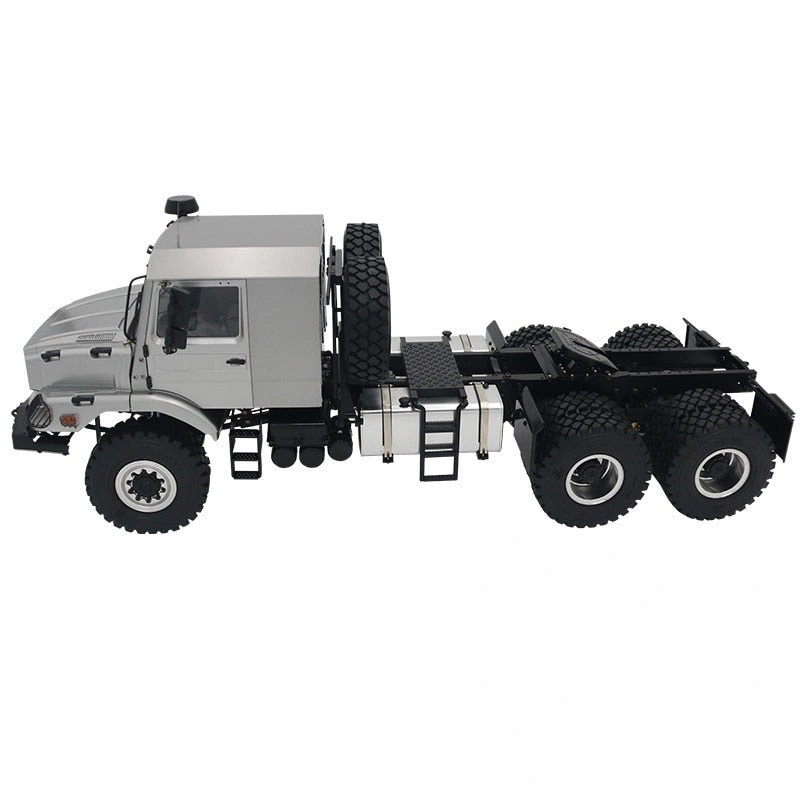

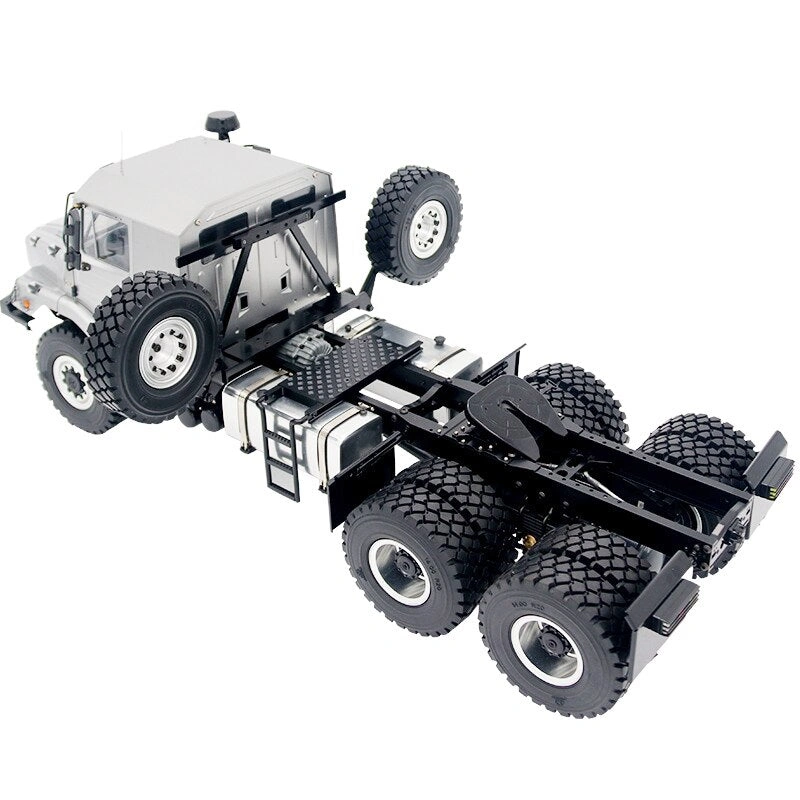

1/14 metal 6X6 remote control off-road car model climbing trailer heavy truck boy toy Christmas gift

Ratio: 1:14
Dimensions: length 674, width 227, height 242 (without antenna 273), MM

Wheelbase: total wheelbase 478, front axle to middle axle 363, middle axle to rear axle 115, MM

Front shock absorber stroke:20 MM

Gearbox: All-metal simulation planetary two-speed gearbox

Axle: Metal axle with differential lock function

Car shell: plastic simulation hard shell, with interior, the door can be opened, the hood can be opened, and the simulation car lights

Spare tire rack: retractable

Chassis: front suspension with anti-roll bars, all metal outside the battery box, simulation pedals, oil tank, exhaust tank, spare tire frame, metal beams, metal wheels, etc.

Remote control: Dumbo DUMBO-X6

ESC: Hobbywing 1060

Steering gear: Wei Chuang customized 0900

Motor: Snow Leopard 35T

Battery specifications: 3S,5200mAh,11.1V,25Cabove; Battery compartment size:142*45*40MM(The battery size is within this range)

weight:6.8KG,Plus remote control7.1KG

Theoretical load:10KG

Total weight:17KG

Precautions:

  The remote control uses 6 AA batteries, the main car battery 11.1V3S lithium battery or 12V battery, the battery connector is XT60.

Steps:

 First turn on the remote control,(The switch or knob of the remote control should be in the default position,),Then connect the main car power,Wait for the signal sound to confirm before you can operate(Within 5S)Main car battery installation:

  Measure the voltage first(The battery and power indicator need to be purchased separately, 3S lithium battery in the size of 142MM in length, 45MM in height and 40MM),The voltage cannot be lower than11.1V
